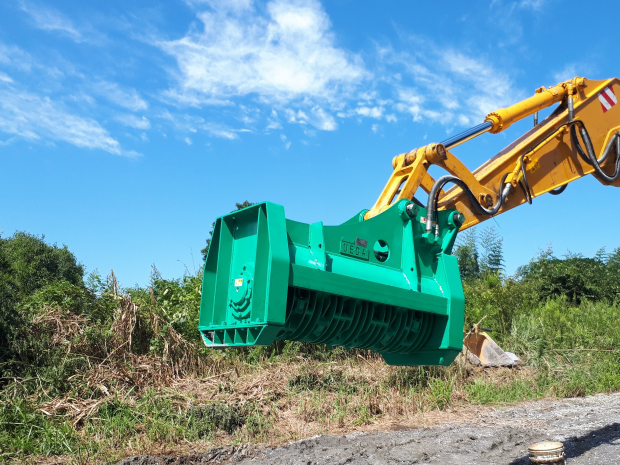

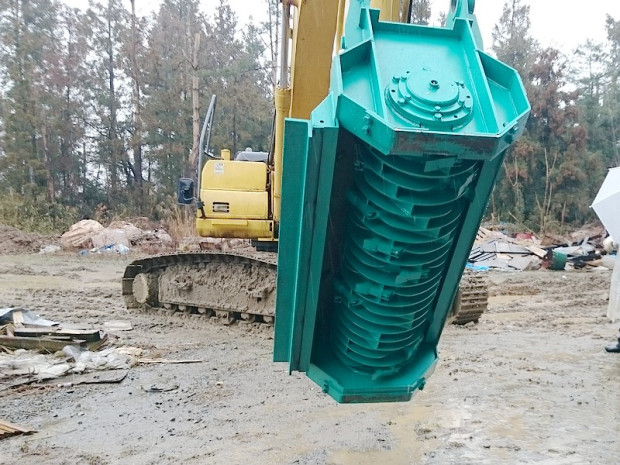

Super Brush Chopper
Features :

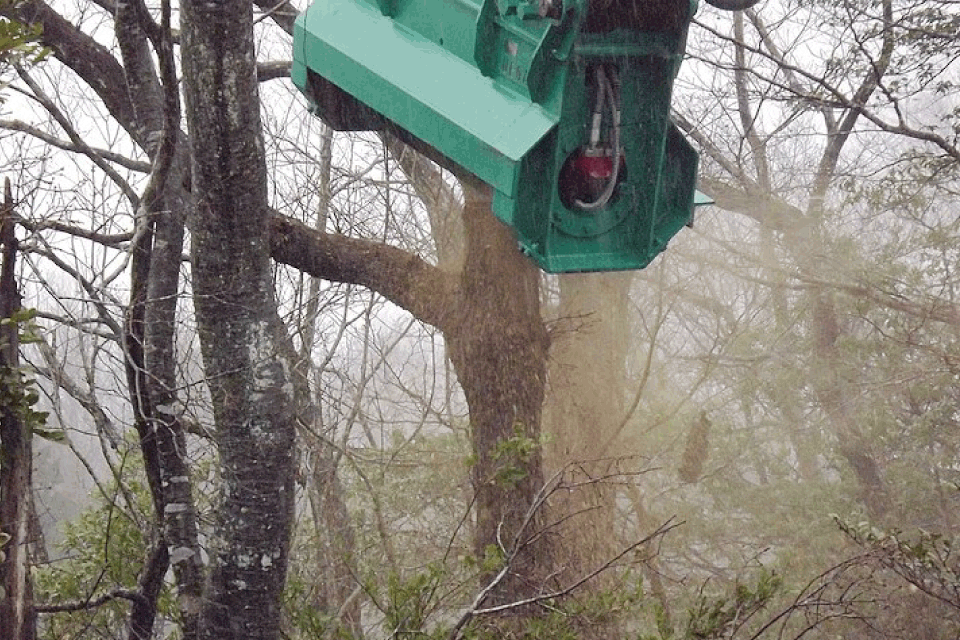

- Super Brush Chopper are good for clearing trees and bush along roadsides and places that could otherwise be difficult to reach.
- There are two types of blades, A-type blade and B-type blade.
A-type Blade (Die Steel): Suitable for Standing trees, Falling trees.
B-type Blade (Tungsten Carbide): Suitable for Standing trees, Stump. - Can cut up to diameter Φ150~300 mm Standing Trees.
- Based on requirement, Blades are chooseable from 50, 75, 100 and 150 mm.
- Easy maintenance because of bolt-on blades.
- More durable with Tungsten Carbide Blades.
- Die Steel Blades for better cutting performance.
- Drain Line is necessary.
Specifications
| Model | SBC-70 | SBC-120 | SBC-200 |
|---|---|---|---|
| Excavator Weight (t) | 6 ~ 7 | 10 ~ 15 | 20 ~ 25 |
| Rotor Width (mm) | 600 | 950 | 1300 |
| Rotating Speed (rpm) | 1400 | 1600 | 1600 |
| Numbers of Blades | 11 | 16 | 24 |
| Cutting Diameter (mm) | 150 | 200 | 300 |
| Oil Pressure (Mpa) | 24.5 | 28 | 28 |
| Oil Flow (l/min) | 90 | 150 | 220 |
| Overall Weight (kg) | 650 | 950 | 1350 |
