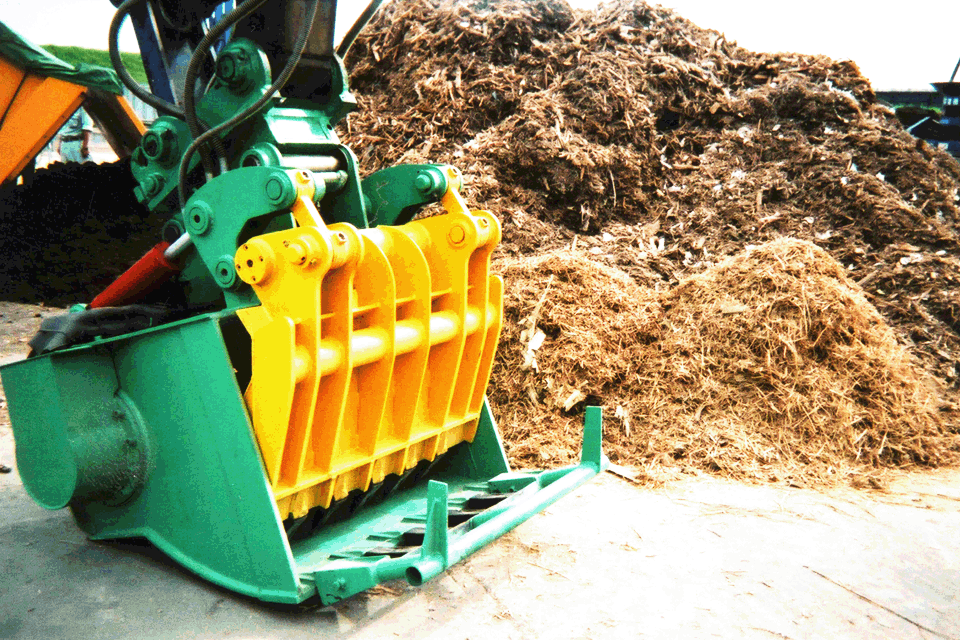

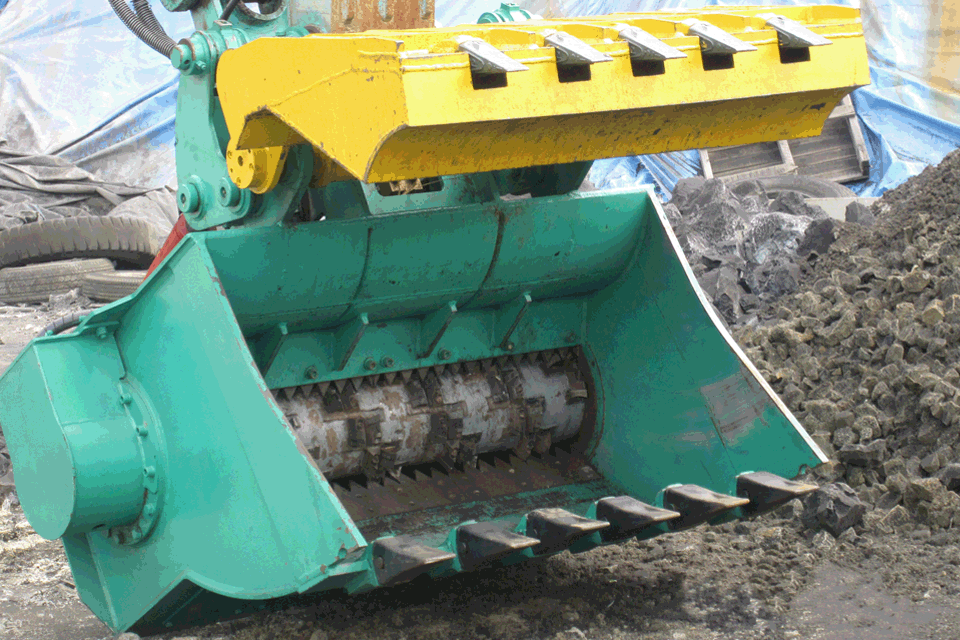

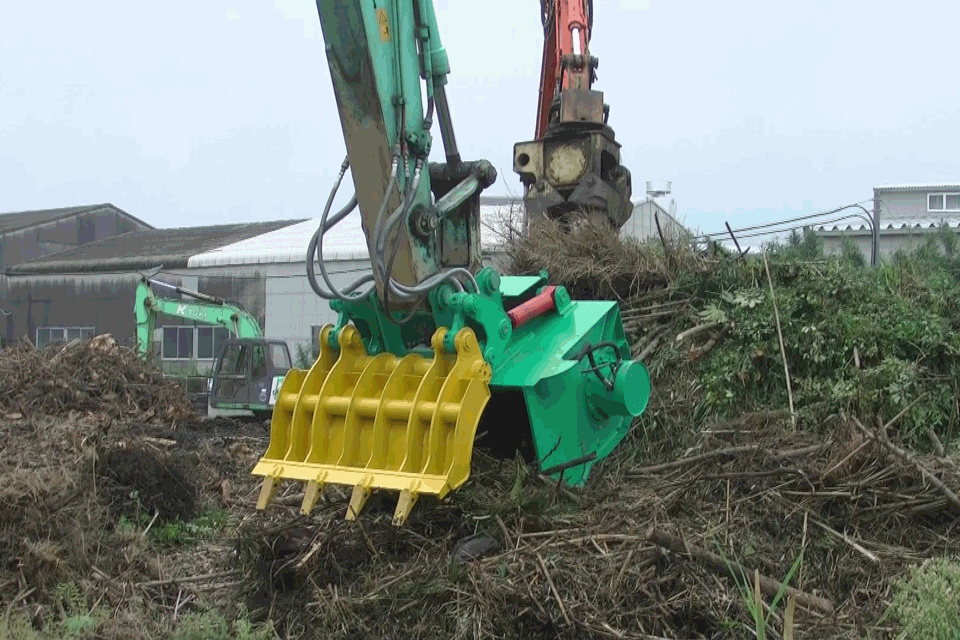

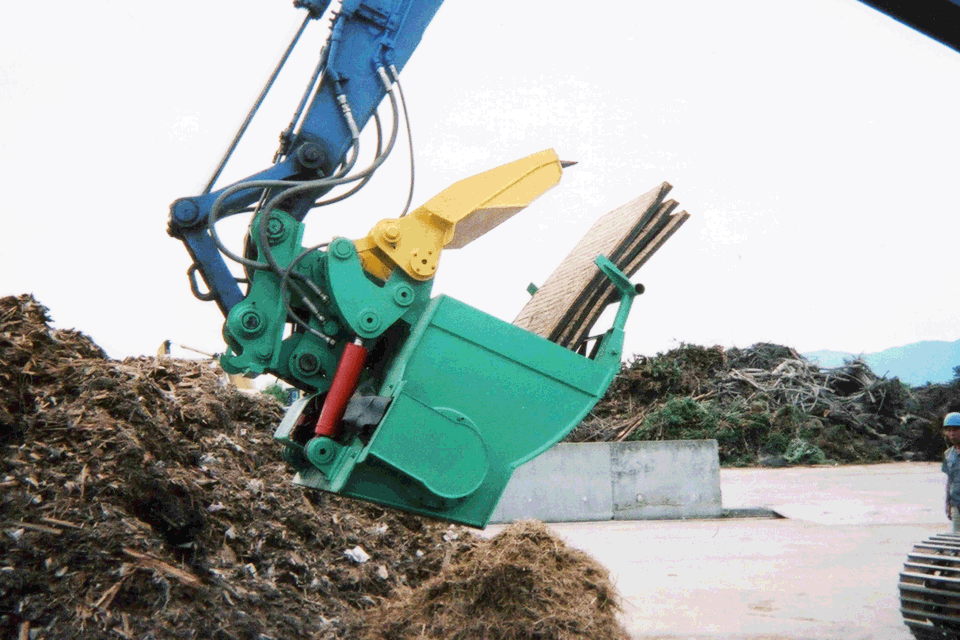

Bucket Shredder
Features :
- Bucket Shredder is perfect for crushing waste and reducing the volumn before further treatment.
- Plastic sheets, Woven sacks, Waste plastic, Tatami, Waste wood, etc. can be crushed.

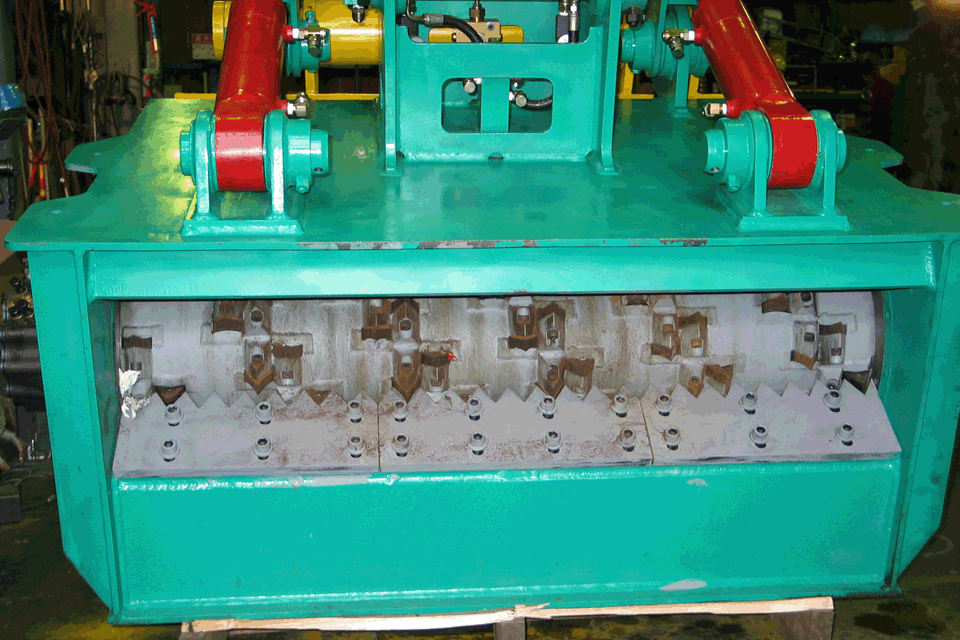

- Optimal design of Jaw plates bring high efficiency of crushing.
- Based on requirement, Blades are chooseable from 50, 75, 100 and 150 mm.
- Drain Line is necessary.
Specifications
| Model | UJ-120 | UJ-200 | UJ-300 | UJ-400 |
|---|---|---|---|---|
| Excavator Weight(t) | 10 ~ 15 | 20 ~ 25 | 30 ~ 35 | 40 ~ 50 |
| Excavator Weight(t) | 10 ~ 15 | 20 ~ 25 | 30 ~ 35 | 40 ~ 50 |
| Bucket Capacity(m3) | 0.35 | 0.65 | 0.75 | 0.9 |
| Oil Pressure(Mpa) | 24.5 | 24.5 | 24.5 | 24.5 |
| Oil Flow(l/min) | 90 | 150 | 230 | 260 |
| Feeding Size(mm) | 600 x 500 | 700 x 500 | 800 x 650 | 1200 x 650 |
| Adjustment Size(mm) | 10 ~ 100 | 10 ~ 150 | 10 ~ 160 | 10 ~ 160 |
| Dimensions(mm) | 1820 x 1080 x 1200 | 2246 x 1380 x 1440 | 2400 x 1660 x 1500 | 2815 x 1660 x 1700 |
| Overall Weight(kg) | 1450 | 2700 | 3400 | 3700 |
| 24V Magnet(option) | 500 x 400 | 500 x 400 | 600 x 500 | 700 x 500 |
