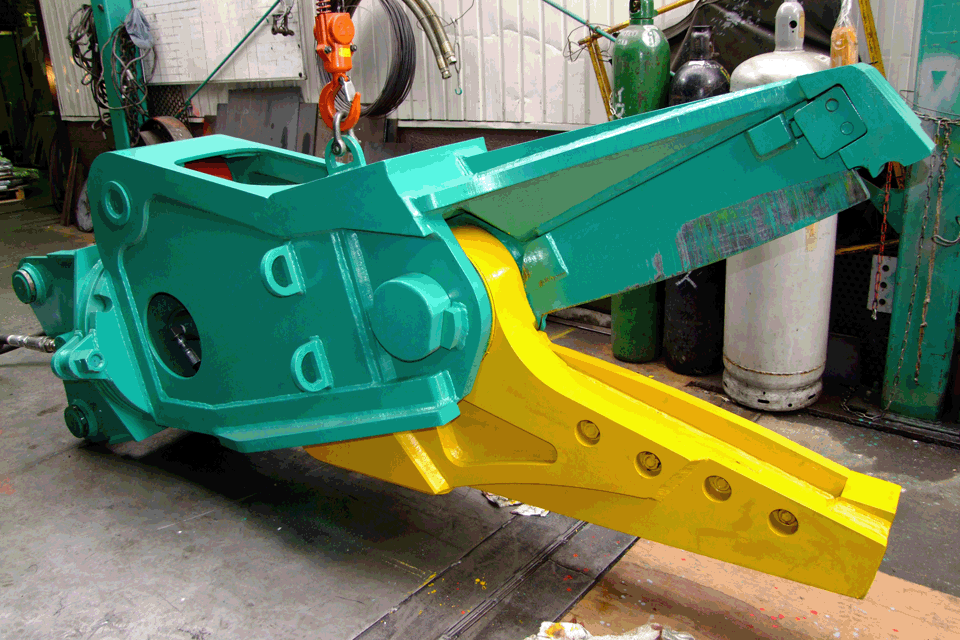

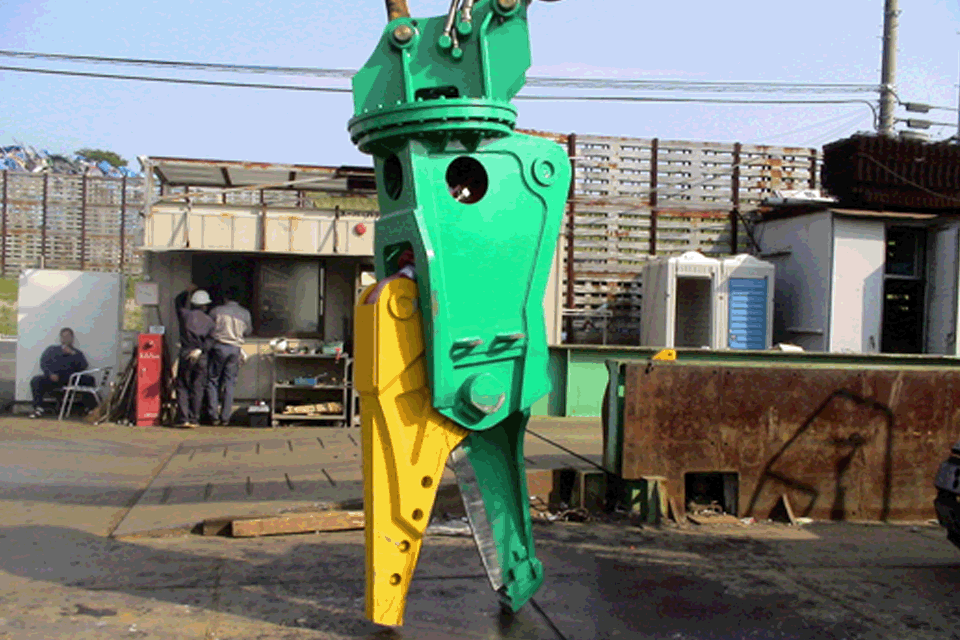

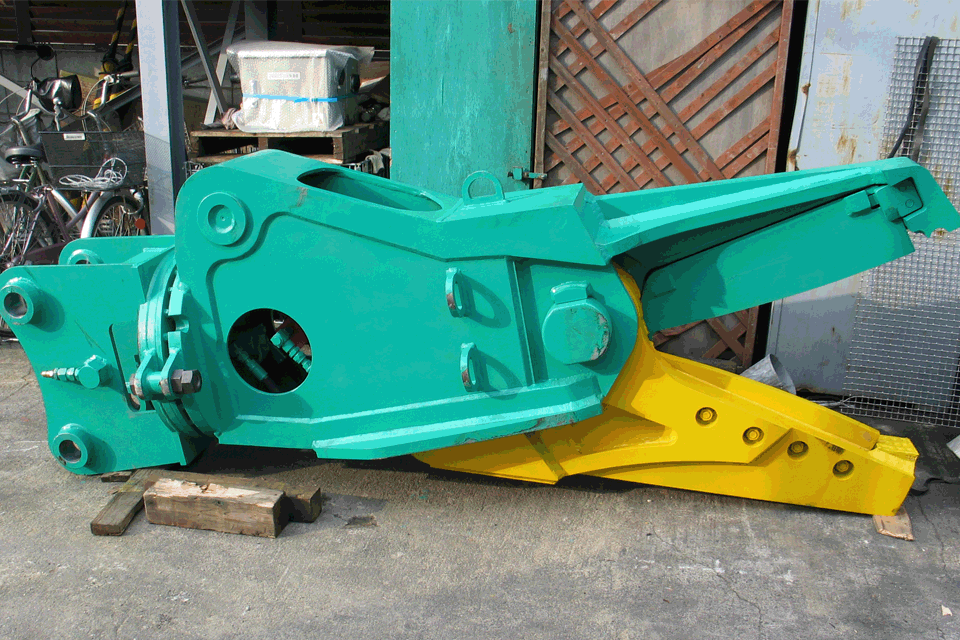

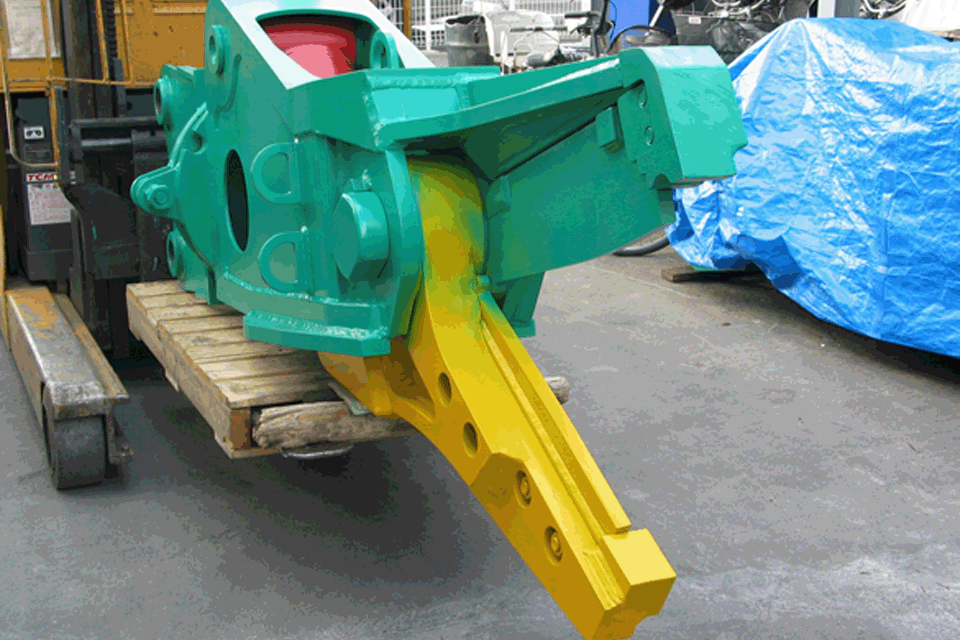

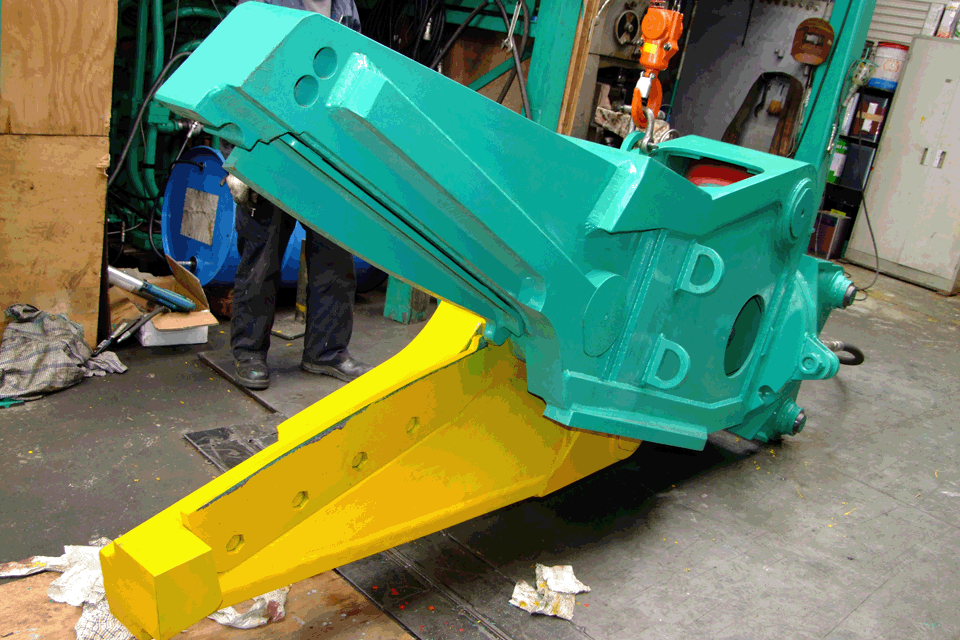

Rublade Cutter
Features :
- Disk Spring structure of blades.
- Body and blade are all built with Hardox.
- Fixed and free rotation type are available.
Specifications
| Model | UZ-70F | UZ-120F | UZ-200F | UZ-300F |
|---|---|---|---|---|
| Excavator Weight (t) | 6 ~ 7 | 10 ~ 15 | 20 ~ 25 | 30 ~ 35 |
| Max. Opening Size (mm) | 400 | 450 | 600 | 700 |
| Overall Length (mm) | 1800 | 2250 | 2500 | 2700 |
| Cutter Length (mm) | 400 | 600 | 750 | 800 |
| Cutting Power (t) | 60 | 90 | 120 | 150 |
| Overall Weight (kg) | 550 | 1200 | 2360 | 3300 |
